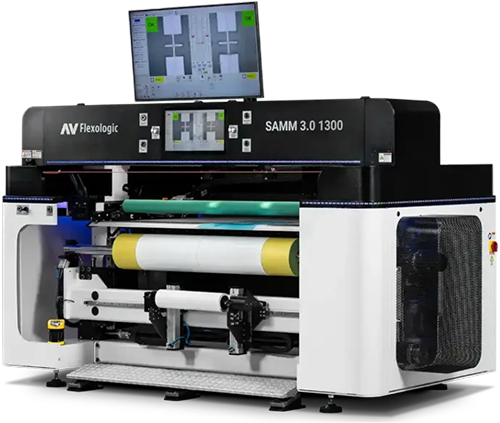

SAMM 3.0
The world's fastest and most accurate flexo plate mounter — mounting each plate in under 30 seconds with 5 micron accuracy.
Discover SAMM 3.0
Introduction to the SAMM 3.0
Experience accuracy, speed, and precision with the new automated system.
Features
Backlight System
Third generation backlight technology for improved image recognition of mounting marks, offering optimal illumination for ultra-high-definition monochrome cameras.
Patented Image Recognition
Checks alignment of mounting marks to ensure printing plates are correctly positioned on the sleeve with absolute precision.
Robotic Plate Positioning
Automatically positions flexo plates with extreme 5 micron accuracy using a robotic table and patented Image Recognition.
Automatic Ultra HD Cameras
Latest HD monochrome cameras with extended beam, moving automatically into the exact mounting position.
Automatic Pressure Roller
Ensures even mounting without any air inclusions. No operator interaction needed.
Vacuum Table
Vacuum system fixates the plate to the robotic table before positioning for maximum accuracy.
Easymount Software
Easy job creation and storage in less than 1 minute. The software recognizes targets and measures distances between them.
Quality Report
Mounting marks are checked and a PDF is automatically created with all Image Recognition measurements.
High Safety Standards
Sleek design with high safety standards and an array of features that further simplify its usage.
Vertically Moving Cylinder
Fixed distance between cameras and plate eliminates focusing. The cylinder also rotates automatically.
Options
Automatic Plate Feeder
Optional automatic plate feeder for continuous, unmanned plate loading during high-volume production runs.
Twin Roll
Mount two plates simultaneously on wider sleeves for increased throughput and reduced changeover times.
TIR Sleeve Measurement
Integrated Total Indicated Runout measurement to verify sleeve quality before mounting, preventing print defects.
AVI — Advanced Visual Intelligence
The SAMM 3.0 supports AVI, our AI-powered mounting mark recognition system. AVI uses convolutional neural networks to detect and recognize marks — even damaged, small, or non-standard ones — for faster, more reliable plate mounting.
Leasing Available
The SAMM 3.0 is available through flexible leasing options. Choose the structure that fits your business.
Financial Lease
Ownership-oriented — build equity while you produce.
- Machine ownership at end of term
- AVF Care Level 2 required (billed separately)
- Flexible terms from 36–60 months
Operational Lease
Service-oriented — one predictable monthly payment.
- AVF Care Level 3 included (full warranty & service)
- Return or upgrade at end of term
- Off-balance sheet financing available
Ready to transform your workflow?
Request a personalized ROI analysis and discover how the SAMM 3.0 pays for itself.
Wide-Web Product Comparison
| Feature | SAMM 3.0 | FAMM 3.0 | SAMM 2.0 | MOM DD+ Pro | MOM DDS 3.0 | RoboCELL |
|---|---|---|---|---|---|---|
| Automation Level | Automatic | Fully Automatic | Automatic | Semi-Automatic | Motorized | Robotic |
| Operator Interaction | Rough pre-position | Plates on conveyor | Rough pre-position | Manual positioning | Manual positioning | Plates on conveyor |
| Mounting Speed | <30 sec/plate | 29 sec/plate | ~45 sec/plate | Varies | Varies | 29 sec/plate |
| Positioning Accuracy | 5µm | 2µm | Image recognition | Operator dependent | Operator dependent | 2µm |
| Capacity | 1 sleeve + 1 plate | 1 sleeve + multi plates | 1 plate at a time | 1 sleeve + 1 plate | 1 sleeve + 1 plate | Multi sleeves + plates |
| Image Recognition | ✓ | ✓ | ✓ | Optional | — | ✓ |
| PDF Quality Report | ✓ | ✓ | ✓ | ✓ | — | ✓ |
| EasyMount Software | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Robotic Sleeve Handling | — | Available | — | — | — | ✓ |
| Robotic Taping | — | Available | — | — | — | ✓ |
| Automatic Tape Application | Optional | Available | — | — | — | ✓ |
| Safety Standards | CE / High | CE / High | CE | CE | CE | CE / High |
